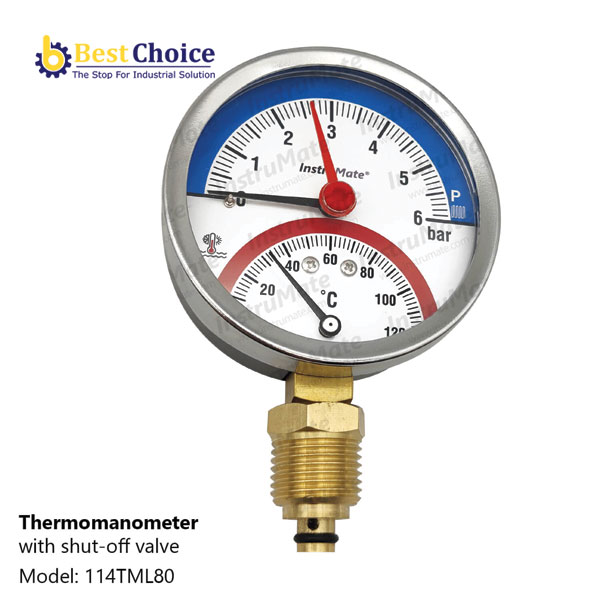

ĐỒNG HỒ ĐO ÁP SUẤT 114TML80

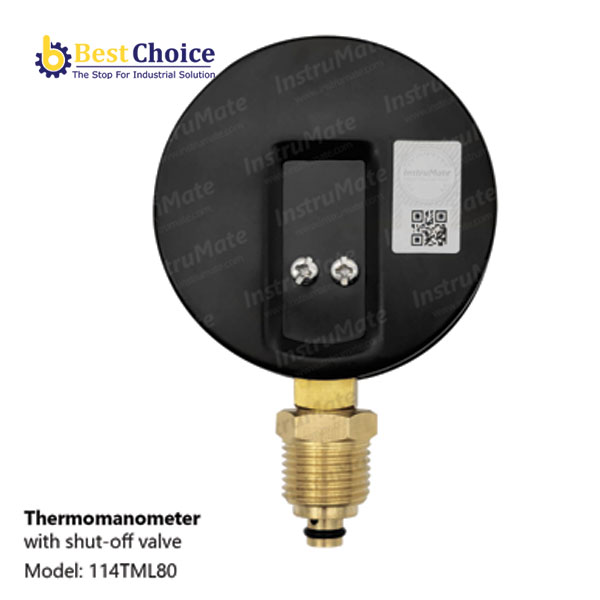

THERMOMANOMETER MODEL 114TML80

ĐỒNG HỒ ĐO ÁP SUẤT 114TM

Thông tin kỹ thuật: Đồng hồ đo áp suất model 114TM

Nominal Size in mm: 80
Scale Ranges:

• Pressure scale ranges: 0…4, 0…6, 0…10, 0…16 (bar)
• Temperature scale ranges: 0…120, 0…160, 0…200 (°C)
  Pressure Limitations: 75% of scale range Max
  Measuring Elements:
• Pressure: Copper alloy
• Temperature: Bimetal coil

Permissible Temperature:

• Ambient: -20…+60 °C
• Medium: +150 °C Maximum

Accuracy:

• Pressure: 2.5% of full scale
• Temperature: ±3°C

Window: Snap-in lens
Case: Black steel

Thông tin sản phẩm: Đồng hồ đo áp suất 114TML80

InstruMate model 114TM provides you with the combined indication of pressure and temperature in a single instrument. This product, widely known as thermomanometer, finds its application mainly in heating systems and boilers.

Model 114TM offered both in lower connection and back connection is available in most popular pressure and temperature ranges for a thermomanometer.

2 in 1 products can barely have the efficiency of separate measuring instruments, but they are a good choice when you have space limitations or have to read the values in the same measuring point.

ĐỒNG HỒ ĐO ÁP SUẤT 114TM

THERMOMANOMETER MODEL 114TM

Applications

• Boilers
• Heating systems
• Distillation devices

Special Features

• Indication of both pressure and temperature in one instrument
• Temperature pointer at center of dial (more accurate reading) Only for back connection
