ĐỒNG HỒ ĐO NHIỆT ĐỘ 111CFL50

UTILITY PRESSURE GAUGE MODEL 111CFL50

ĐỒNG HỒ ĐO NHIỆT ĐỘ 111CF

Thông tin kỹ thuật: Đồng hồ đo nhiệt độ model 111CFL50

• Nominal Sizes in mm: 40, 50, 63, 100
• Scale Ranges: 0…1 bar to 400 bar
• Vacuum & compound ranges
• Pressure Limitations: Steady: 75% of full scale
• Fluctuating: 65% of full scale
• Over-Pressure: 100% of full scale
• Pressure Element: Copper alloy
• Permissible Temperature: Ambient: -20…+60 °C
• Medium: +65 °C Maximum
• Accuracy: NS 40: 2.5% of full scale
• NS 50, 63, 100: 1.6% of full scale
• Window: Snap-in Lens, Scratch-resistant
• Case & Wetted parts: Black steel (Electrostatic)

Thông tin sản phẩm: Đồng hồ đo áp suất model 111CF

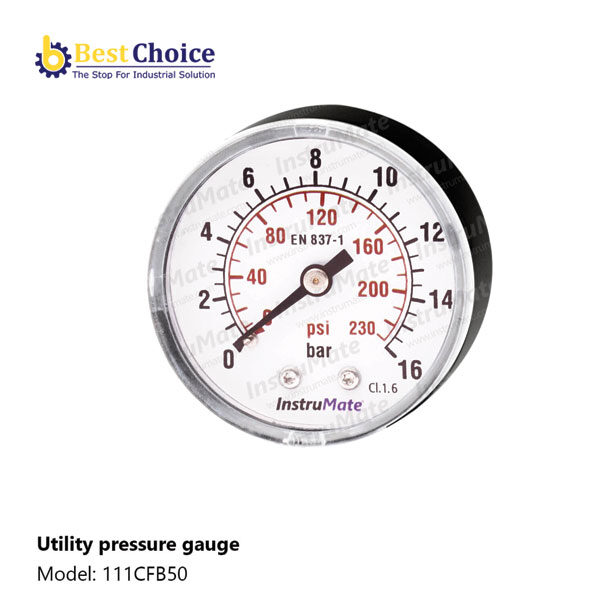

InstruMate group of dry pressure gauges covers a series of dry pressure gauges used as utility and cost effective solutions. InstruMate utility manometers benefit from the bourdon tube measuring system. InstruMate production process assures enough attention even for the most cost effective gauges.

InstruMate dry pressure gauges find their application when there is a need to measure gas, water, oil or any medium not corrosive to brass and copper alloys.

ĐỒNG HỒ ĐO NHIỆT ĐỘ 111CFL50

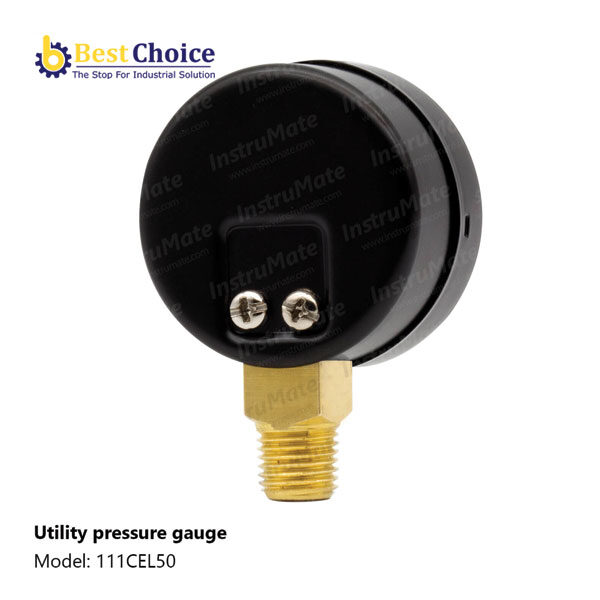

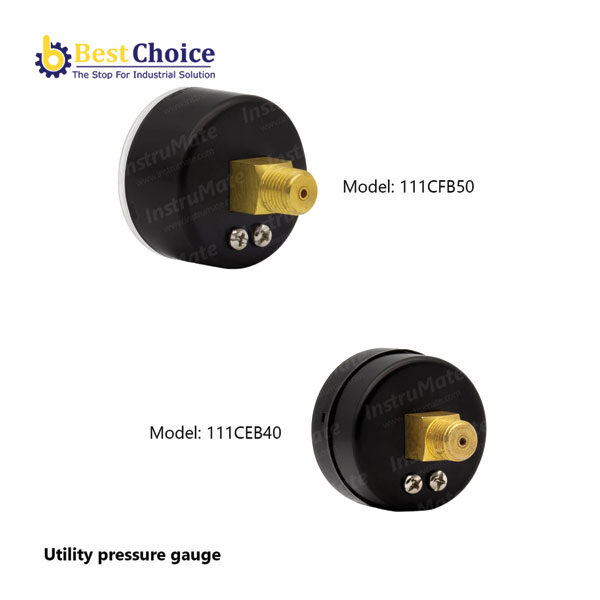

The model 111CF is constructed from a black steel case with a snap-in lens which is both scratch-resistant and break-resistant.

All InstruMate pressure gauges have geometrically balanced dial designs, thus a much easier reading experience.

UTILITY PRESSURE GAUGE

Applications:

• Gas and liquids
• Pneumatics
• HVAC
• Medical machineries
• General purpose machineries
• Do not use directly for medias that are viscous, crystallizing and corroding copper alloy

Special Features

• Full brass socket made from brass bar (heavier in weight and strong connection)
• Cost efficient choice and reliable mechanism
• Special window material: scratch-resistant, break-resistant
• Indicated accuracy is guaranteed
