ĐỒNG HỒ ĐO NHIỆT ĐỘ 112AAL100
Description
ĐỒNG HỒ ĐO NHIỆT ĐỘ 112AAL100

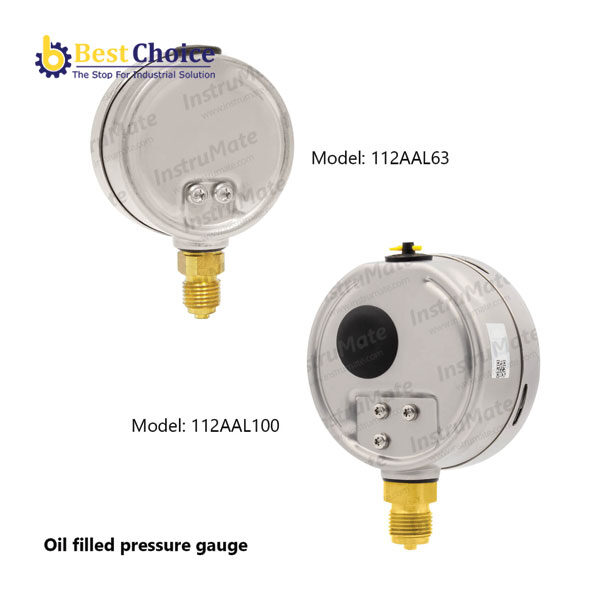

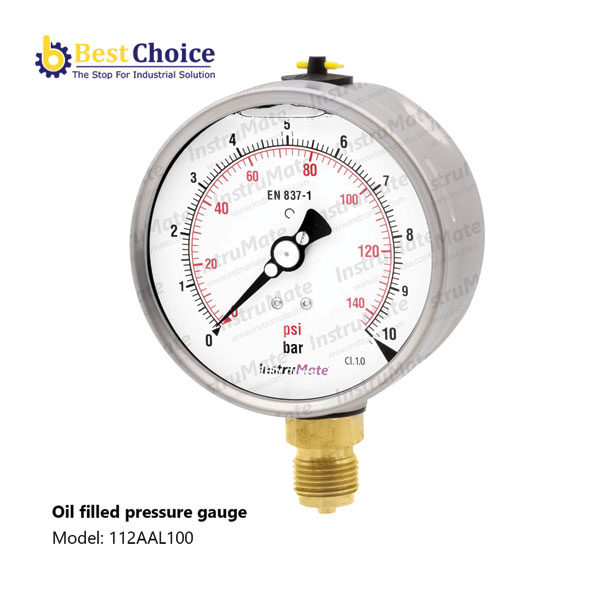

OIL FILLED PRESSURE GAUGE MODEL 112AAL100
ĐỒNG HỒ ĐO NHIỆT ĐỘ 112AAL100
Thông tin kỹ thuật: Đồng hồ đo nhiệt độ 112AAL100
- Nominal Sizes in mm: 63, 100, 160
- Scale Ranges:
| NS 63: | 0…1 bar to 700 bar |
| NS 100, 160: | 0…0.6 bar to 700 bar |
| Vacuum & compound ranges | |
Pressure Limitations:
| NS 63 | |
| Steady: | 75% of full scale |
| Fluctuating: | 65% of full scale |
| Over-Pressure: | 100% of full scale |
| NS 100, 160 (Heavy duty) | |
| Steady: | 100% of full scale |
| Fluctuating: | 85% of full scale |
| Over-Pressure: | 130% of full scale |
Pressure Element: Copper alloy
Permissible Temperature:
| Ambient: | -20…+60 °C |
| Medium: | +65 °C Maximum |
Accuracy:
| NS 63: | 1.6% of full scale |
| NS 100, 160: | 1% of full scale |
Window:
| NS 63: | Instrument Glass |
| NS 100, 160: | Safety Glass |
Case: Matte SS304 (DIN type)
Thông tin sản phẩm: Đồng hồ đo nhiệt độ 112AAL100
InstruMate group of oil fillable pressure gauge covers a series of oil-filled pressure gauges efficient for plants or machineries with pulsating pressures or mechanical vibrations. As sensitive a pressure gauge as might be, vibration threatens its long life span and that is the time InstruMate 112 series come into action.
InstruMate 112AA is not only shock resistant when filled, but also it has a heavy duty mechanism for more demanding applications (only with dial size 100 and 160mm) with the accuracy of 1% according to EN837-1. A safety glass and a micro-adjustable pointer are other advantages which distinguish it from average class of oil filled gauges in 100, 160mm dial size.
Since oil filled pressure gauges have a copper alloy connection, considerations about their corrosion and clogging is recommended.
The model 112AA is constructed from a matte stainless steel case with a DIN type bayonet bezel.
All InstruMate pressure gauges have geometrically balanced dial designs, thus a much easier reading experience.
Application
Hydraulic systems, pumps and presses
Measuring needs with sudden or dynamic pressure changes
Vibrating machineries, diesel engines
Do not use directly for medias that are viscous, crystallizing and corroding copper alloy
Special Features
Re-calibratable and re-adjustable
Popular bayonet bezel design
No leakage guaranteed
Heavy duty mechanism for dial sizes 100 & 160mm
