Description

Khớp nối chống rung cao su lót PTFE

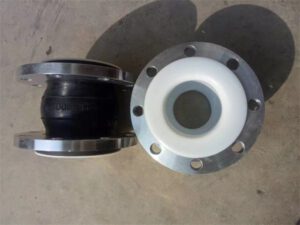

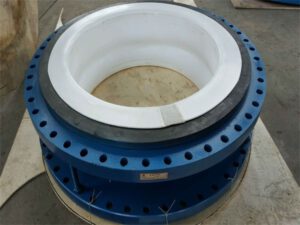

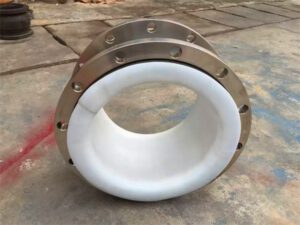

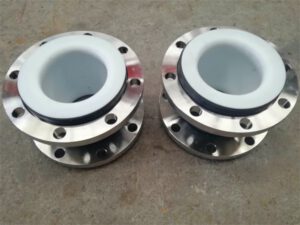

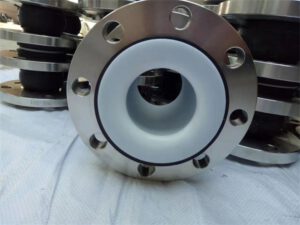

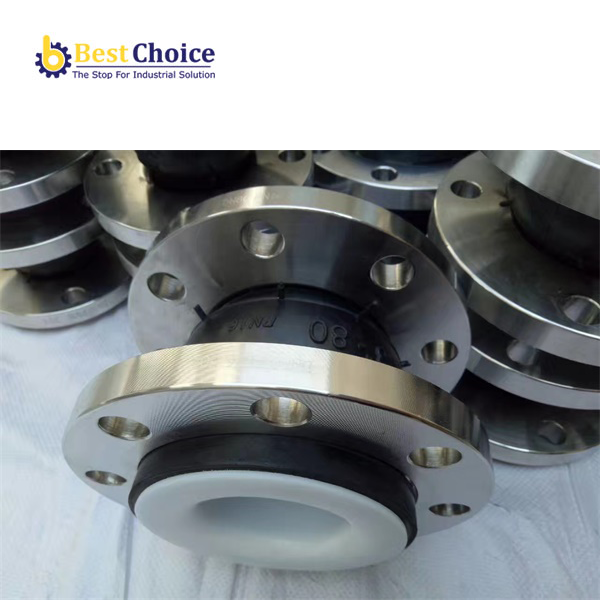

PTFE Rubber expansion joint

Khớp nối chống rung cao su lót PTFE

Khái niệm: Khớp nối chống rung cao su PTFE được sử dụng rộng rãi trong việc kết nối với máy bơm và van, đường ống có độ rung lớn, đường ống chịu axit và kiềm mạnh với sự thay đổi nhiệt và lạnh thường xuyên.Tính năng đàn hồi cao, độ giãn dài cao, khả năng chống rách và cách điện tuyệt vời, khả năng chống mài mòn và chống hạn tốt, khả năng xử lý tốt, dễ dàng kết dính với các vật liệu khác và vượt trội so với hầu hết cao su tổng hợp về hiệu suất toàn diện

PTFE rubber joints are widely used in connection with pumps and valves, pipelines with large vibration, pipelines with strong acid and alkali resistance with frequent changes in heat and cold.

Features: High elasticity, high elongation, excellent tear resistance and electrical insulation, good wear resistance and drought resistance, good processability, easy adhesion to other materials, and superior to most synthetic rubber in comprehensive performance

• DIMENSION: DN32mm-DN3000mm
• PRODUCT PRESSURE: 0.6-2.5 MPa
• FLANGE MATERIAL: carbon steel, stainless steel (304.316)
• SERVICE TEMPERATURE: – 180 degrees to 250 degrees.
• APPLICABLE MEDIA: strong acid and base, aviation kerosene, gasoline, diesel oil

PERFORMANCE

Introduction to PTFE:

Because PTFE has high temperature resistance, corrosion resistance, non-stickiness, self-lubrication, excellent dielectric properties and very low friction coefficient. Generally used in pipelines, containers and pumps with high performance requirements. Fluorine lining is mainly used in strong corrosion conditions. PTFE is used to prevent medium from corroding rubber joints and pipes where rubber joints and strong corrosion contacts occur. PTFE is a synthetic fluorine-containing polymer, which has many applications due to its non-stickiness and resistance to certain chemicals.

PTFE rubber joint has unique thermal stability:

PTFE rubber expansion joints have unique thermal stability, non-sticky surfaces, very low friction coefficient and resistance to almost all corrosive fluids and chemical erosion forms. When other materials are not suitable, use PTFE lining expansion joint. They are designed for environmentally corrosive applications and are commonly used in chemical plants and water treatment plants.

Use environment:

PTFE expansion joints are widely used in paper mills, chemical factories and other pipeline applications for treating acid and highly corrosive chemicals.PTFE expansion joints we manufacture are used to transport chemicals, strong acids, corrosives or other harmful substances. Provide excellent tolerance for almost all chemicals.

Rubber Joints of Different Material Used in Different Environment:

• Normal water, air conditioning water, temperature below 80 degrees: NR rubber joint;
• Weak acid and alkali, high 120 degrees: EPDM rubber joint;
• Hydraulic oil medium: NBR rubber joint;
• Acidic-alkali, high temperature below 140 degrees: KFM rubber joint
  Seawater: CR rubber joint.

PRODUCT PARAMETERS
