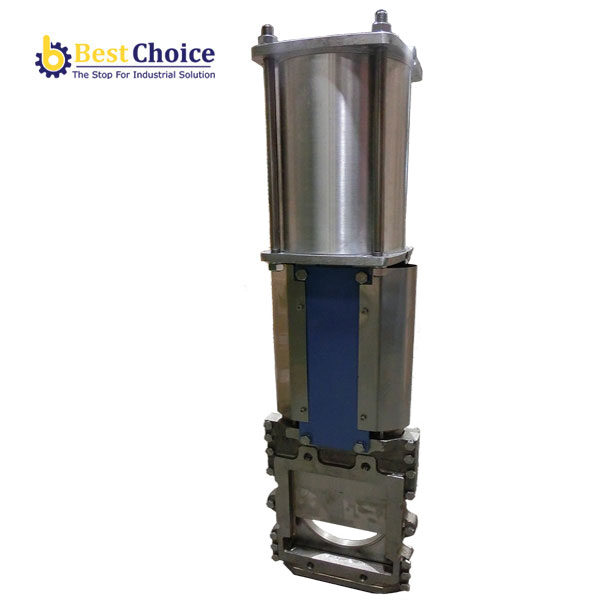

RC – SQUARE ROUND KNIFE GATE VALVE

RC – SQUARE ROUND KNIFE GATE VALVE

The square round Wafer knife gate is a heavy duty valve design for handling difficult applications. This valve is suitable for use in recycling applications, like rubbish or sand traps of pulpers, high consistency cleaners… or as silo outlet with solid material.

The two piece body with round inlet and square outlet (larger than the inlet) assures non-jamming.

Main caracteristics:

• Cast two-part bolted body, internally machined and with reinforcing ribs in larger diameters for extra body strength.
• The internal replaceable gate guides allow for smoother gate traveling.
• Oversized knife polished on both sides
• Long-life packing with several impregnated Synt+PTFE strips
• Suitable to work with the most severe applications

* Valves manufactured following European Pressure Equipment Directive PED 2014/68/EU.

FLANGES

• Standard
• DIN PN10
• ANSI 125/150

(Only for round flange).

* Other Flanges, please check availability

SEAT

• Metal/metal
• Watertight

PRESSURES & SIZES

• DN200 (8”)  10bar
• DN600 (24”)   4bar

* Higher pressure conditions on request

* Other sizes on request

MATERIALS

BODY: GG25, GGG40, GGG50, A216 WCB, CF8 (AISI304), CF8M (AISI316), 254SMO, SS310, AISI904

SEAT, SEALING RINGS: EPDM, NITRILE (NBR), SILICON, VITON, GRAPHITE, FLUCAST, TEFLON (PTFE)

KNIFE: AISI304L, AISI316L, AISI316TI, 310S, AISI904L, 254SMO, HARDOX,

PACKING: SYNT+PTFE, Pure PTFE , GRAPHITE, CERAMIC

O´RING: EPDM, NBR, SILICON, VITON

ACTUATORS: Manual, pneumatic, hydraulic, electric, gear box, handlever, square end, chain-wheel, pneumatic with security handwheel

ACCESSORIES: Limit switches,, proximity sensors, solenoid valves, positioner 4/20mA, sleeves, locking devices, extension, regulation v-ports, bonnet…etc.

SECTORES: Wastewater treatment plants, , bulk handling, Pulp & Paper, mining……
