Rectangular expansion joint

Rectangular expansion joint

The rectangular expansion joint makes use of the effective expansion and deformation of the bellows of its main body to absorb the size changes of pipelines, conduits and containers caused by thermal expansion and cold contraction, or to compensate the axial, transverse and angular displacements of pipelines, conduits and containers.It can also be used for noise reduction and vibration reduction.

Features: Long life, environmental protection, shock absorption and noise reduction

• NOMINAL DIAMETER: DN300*400mm-DN6000*5000mm
• MATERIAL: Stainless steel

PERFORMANCE

Advantage:

1.Rectangular expansion joint is easy to bend, so it is not necessary to use various elbow transitions in the corners of buildings, making installation more convenient and faster, and reducing costs
2. The surface of the rectangular expansion joint is covered with a protective cover that blocks the combustion hose and has good surface impact resistance.
3. good safety, each metal bellows has been tested for its air tightness and pressure resistance before leaving the factory, for future use until reliable
4.The connection mode is flexible, can be used as a non-metal flat pad seal connection, or a metal ball cone hard seal connection.

Application:

Rectangular expansion joint is applied to the import and export of various pumps, valves and air compressors, fire piping, air conditioning piping, steam piping, etc., General Factory piping and occasions requiring sanitation, piping of import and export machinery and equipment of central air conditioning pumps, fire pumps and domestic feed pumps, occasions requiring shock absorption and thermal displacement compensation, etc. Used in power plant, steel plant, coke, cement industry, flue, duct, dust, fan duct, etc. When the pipeline passes through the foundation beam or basement wall, square expansion joint is needed to avoid the pressure on the pipeline caused by the settlement of the foundation.

Function of rectangular expansion joint :

1. Compensate the axial, transverse and angular thermal deformation of absorption pipeline.
2.Corrugated bellows expansion quantity, convenient installation and disassemble of valve pipe.
3.Absorb equipment vibration and reduce the impact of equipment vibration on pipelines.
4.Absorb the deformation of pipelines caused by earthquake and subsidence.

Expanding Knowledge:

Regardless of the accessories such as lining and cover, rectangular expansion joint can absorb all the movement of any section of pipeline, but it is mainly used to absorb the axial movement.
They do not limit the pressure thrust, so they must provide sufficient anchors and guiding devices, and they can only be used in pipeline systems with properly designed anchors and alignment guiding devices.
The shape of rectangular bellows is similar to the top of the word “convex or concave”; it is the same as the basic principle of bellows , but the compensation range of rectangular bellows is not as large as bellows , and the location of the rectangular bellows expansion joint is limited to a certain extent!

PRODUCT PARAMETERS

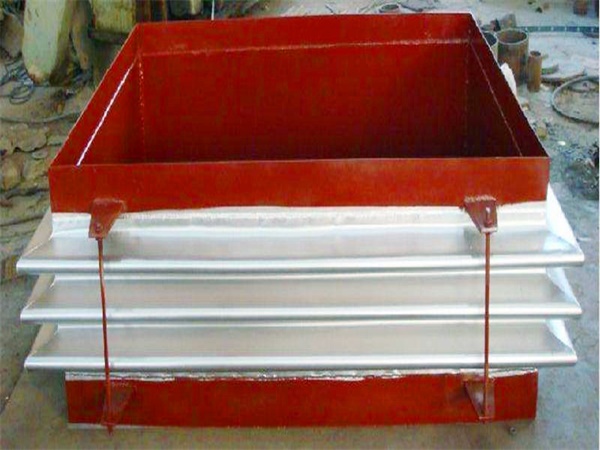

Rectangular expansion joint-1

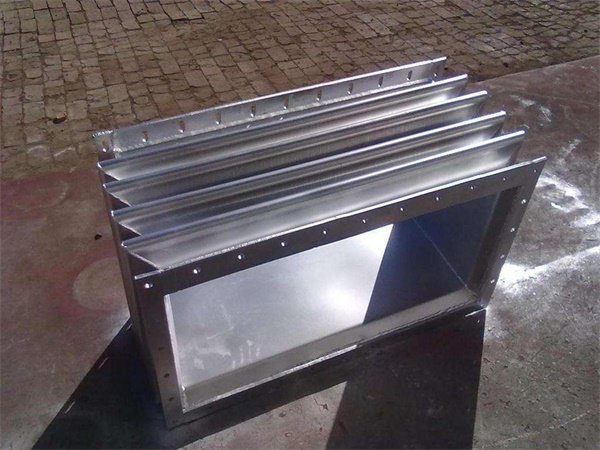

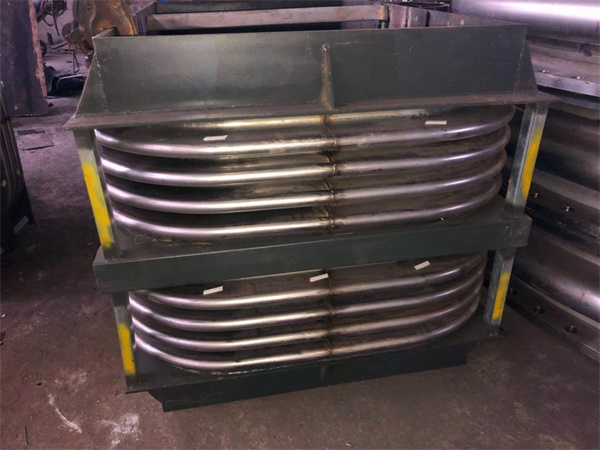

Rectangular expansion joint-2

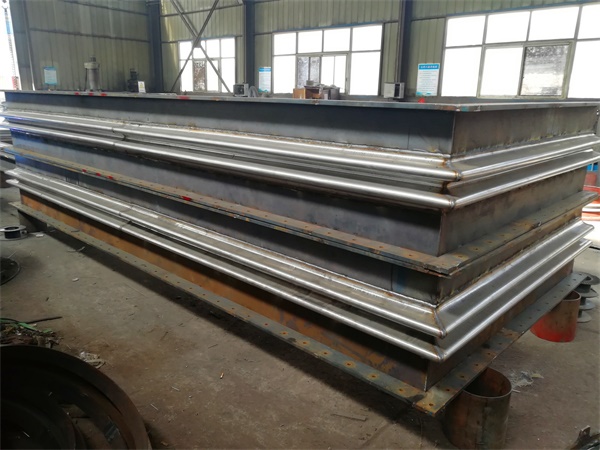

Rectangular expansion joint-3

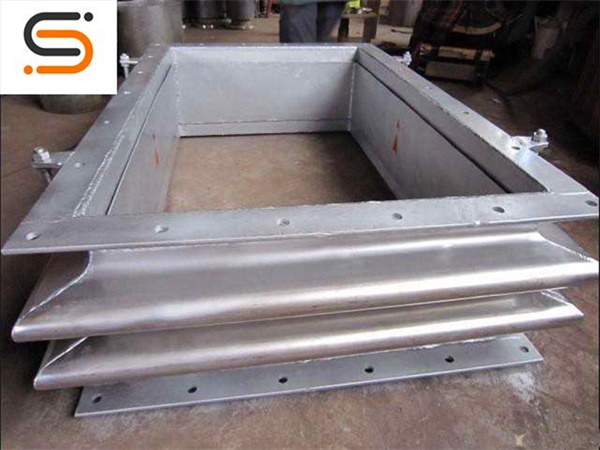

Rectangular expansion joint-4

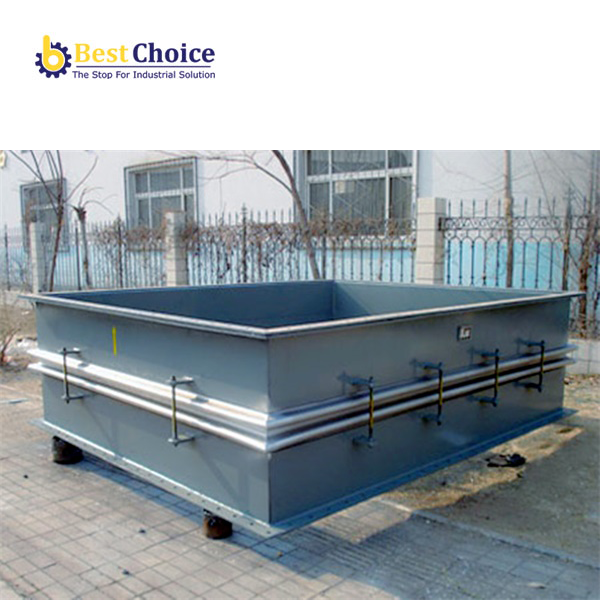

Rectangular expansion joint-5
