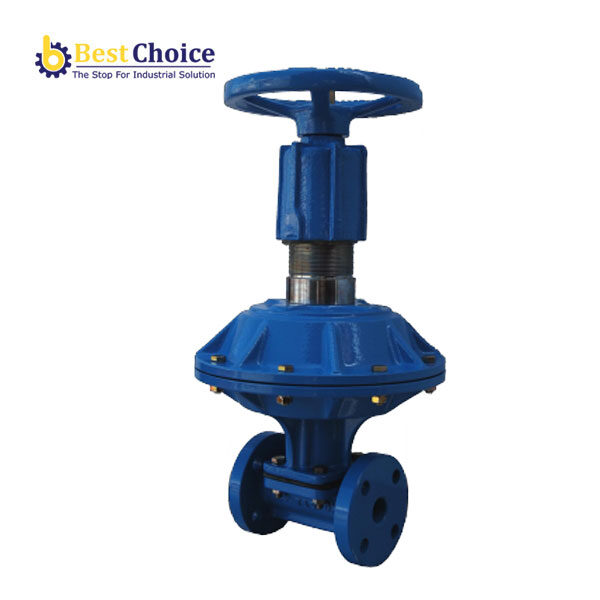

The T85 Straight Through Diaphragm valve is a monoblock bidirectional valve. Depending on the application, different quality of the body and rubber lining solutions can be given.

The main features of the valve:

• 100% leak tightness performance guaranteed
• The valve can be installed in any position
• Produced with high EU quality components
• Easy maintenance: Three part design allows maintenance and actuator retrotitting without removing the valve body from the pipeline.
• Handwheel: comfortable grip, easy to use for fast operation, saves time and effort.
• Stem designed to reduce friction for low operating torque.
• Diaphragm: provide positive shutoff and isolates all working parts from line fluid.
• Full flow and low pressure drop

* Valves manufactured following European Pressure Equipment Directive PED 2014/68/EU.

AVAILABLE CONNECTIONS

• Face to face according DIN-3202 & BS-5156.
• Flanges DIN PN10/PN16 Y ASA 125/150.

*Other norms on request

PRESSURES & SIZES

HANDWHEEL

Maximum service pressures recommended:

• DN15 (1/2”) – DN50 (2”) 8 bar
• DN65 (2 1/2”) – DN125 (5”)  6 bar
• DN150 (6”) – DN300 (10”) 4 bar

PNEUMATIC (air to close) (AD)

Maximum service pressures recommended:

• DN20 (3/4”) – DN50 (2”)  7 bar
• DN65 (2 1/2”) – DN80 (3”)   5 bar
• DN100 (4”) – DN150 (6”)  4 bar
• DN200 (8”) – DN300 (12”)  3 bar

* Recommended pressure in the pneumatic: 4 bar

PNEUMATIC (air to close) (AD -V)

Maximum service pressures recommended:

• DN20 (3/4”) – DN50 (2”)  7 bar
• DN65 (2 1/2”) – DN80 (3”)   5 bar
• DN100 (4”) – DN150 (6”)  4 bar
• DN200 (8”) – DN300 (12”)  3 bar

* Recommended pressure in the pneumatic: 4 bar

PNEUMATIC (Double Acting) (AD -2 and AD-V2)

Maximum service pressures recommended:

• DN20 (3/4”) – DN50 (2”)  7 bar
• DN65 (2 1/2”) – DN80 (3”)   5 bar
• DN100 (4”) – DN150 (6”)  4 bar
• DN200 (8”) – DN300 (12”)  3 bar

* Recommended pressure in the pneumatic: 4 bar

PNEUMATIC (air to open) (AI-V and AI-VR)

Maximum service pressures recommended:

• DN20 (3/4”) – DN50 (2”)  7 bar
• DN65 (2 1/2”) – DN80 (3”)   5 bar
• DN100 (4”) – DN150 (6”)  4 bar
• DN200 (8”) – DN300 (12”) 3 bar

* Recommended pressure in the pneumatic: 5 bar

MATERIALS

BODY: GG25, GGG40, GGG50, A216 WCB, SS316 (CF8M), CARPENTER20 (CN7M).

* Special alloys on request.

LINING: HARD RUBBER/EBONITE, ANTIABRASIVE NATURAL RUBBER, NEOPRENE, BUTYL, NITRILE (NBR), HYPALON, HALAR (ECTFE),  RILSAN (POLIAMIDE)

*Other linings available on request

BONNET: GG25.

*Others on request

DIAPHRAGM:

• Butyl (BU) Blue
• Aliment butyl (BUA)
• Reinforced butyl (BUR)
• Natural rubber (BL) White
• Natural aliment rubber (BLA)
• PDM (EP)
• Hypalon (HY) Green
• Neoprene (NE) Red
• Nitrile (NI) Yellow
• Silicone (SI)
• Viton (VI) Orange

*The abbreviations or the identification colours are in theflap of the diaphragm.

*The bonnet diaphragms are always in Natural rubber (BL).

ACTUATORS

Manual, air open actuator, air to close actuator, double acting actuator, electric, gear box.

ACCESSORIES

Position indicators, switches, solenoid valves, padlocks, mechanical limit switches, positioner

SECTORS

Wastewater treatment plants, Chemical industry, power plants, automotive sector, food & beverage, mining, nuclear plants, metallurgical industry, pulp & paper…industry in general.
